Xinxing Floor ball dasher board SGS certified- size 40mx20m containing 52x2m, 4x1m, 4xoblouk, 2 carts incl. Xinxing Floor ball rinks are made from polypropylene and includes a two-meter, one-meter and corner pieces. The connection between units is achieved by an elastic rubber tension system, and 2 P / D Standard color is white cushions and black (blue on request).
Resistant to breakage, the possibility of advertising stickers on both sides.
Standard size:
●2mx0.5m
●1mx0.5m
A 40 m long side of the rink need 18 pieces of the 2 m and 1 piece of the 1 m segment. A 20 m long side of the rink need 8 pieces of the 2 m and 1 piece of the 1 m segment. A rounded corner is expected to be 1,5 m long on each rink side out of an imaginary corner point at an angle of 90°.
The weight of segments
The 2 m piece : 8,8 kg
The 1 m piece : 4,4 kg
The rounded Corner – 9,5 kg
Weight of the set: approximetely 515 kg

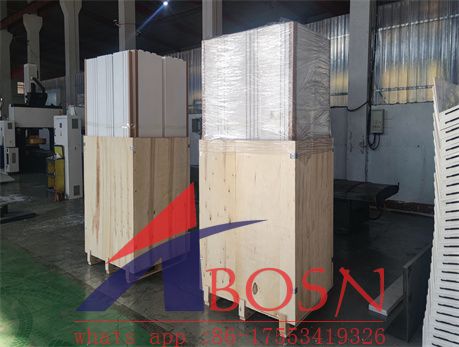

Storage and shipment

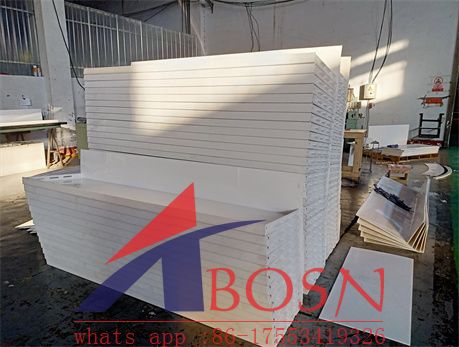

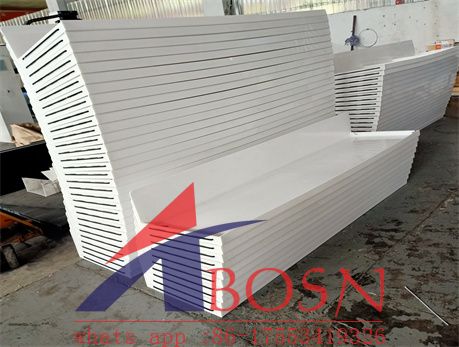

The rink is stored
leisurely in horizontal position, with the maximum 10 pieces being stacked, one bottom edge over another. Stacking additional pieces over this standard 10-piece pile is not recommended as shape alterations in bottom pieces might occur.

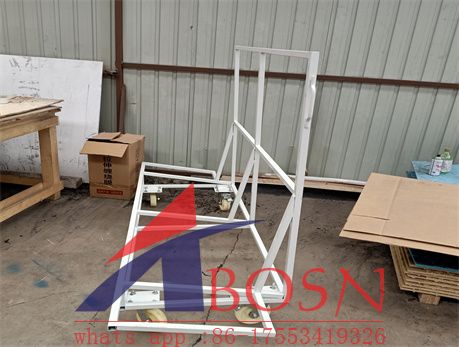

on trolley (for ground 40 x 20 you need 2x trolleys)
